Add UI Component

Add the UI Component

ROQ provides two UI Components which can be used to upload files:

  1. The <FileUpload/> component represents a button that opens a file selector and starts uploads.

  2. The <FileDropzone/> UI component represents an area on your application where users can drag and drop files to be uploaded.

Please follow the respective instructions to integrate the UI component into your website. You'll need to pass the key of the previously created category as a prop.

Add <FileUpload> Into Application

For this example, please check out the generated application code in this GitHub repository (opens in a new tab).

Add the <FileUpload> UI component into the existing application code:

// src\pages\videos\create\index.tsx
import {
	AccessOperationEnum,
	AccessServiceEnum,
	requireNextAuth,
	withAuthorization,
	FileUpload
} from '@roq/nextjs';

Add the <FileUpload/> to the existing video form:

// src\pages\videos\create\index.tsx
<FormControl id="file" mb="4">
	<FormLabel>Upload File</FormLabel>
    <FileUpload
		accept={['video/*']} fileCategory="USER_FILES"
        onUploadSuccess={({ url, id, ...rest }) => {
            console.log({ id, url });
            formik.setFieldValue("fileUrl", url);
            formik.setFieldValue("fileId", id);
        }}
		onUploadFail={(err => {
			console.log(err)
		})}
    />
</FormControl>

The <FileUpload/> UI component above will only accept video file type and the uploaded file will be saved in the USER_FILES category (please look into the ROQ Console for file categories). The reult of file upload are fileUrl and fileId.

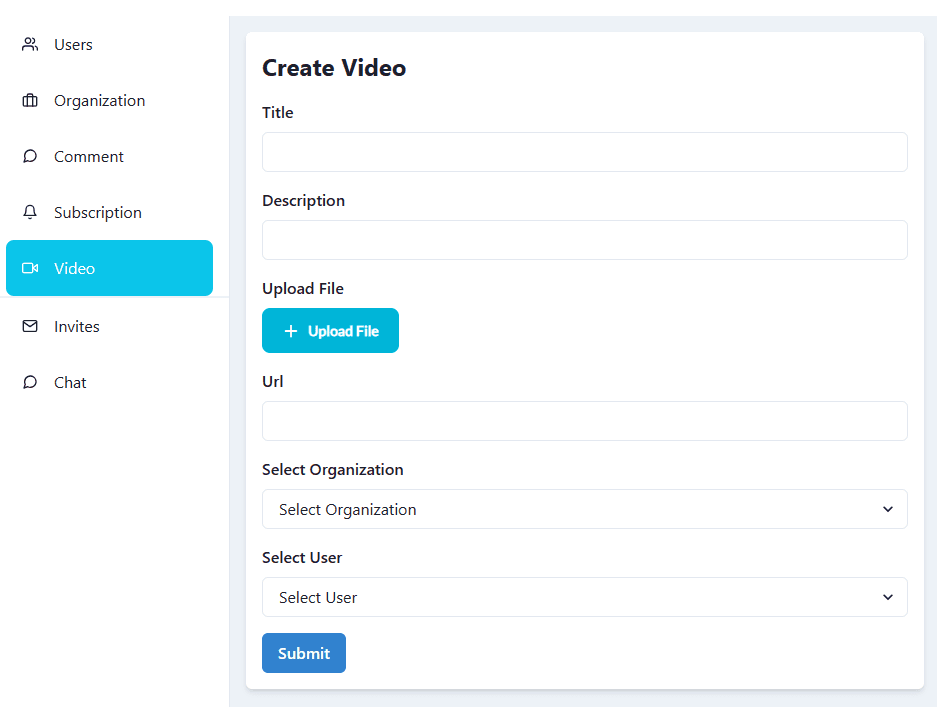

In the generated application, go to the Videos side menu and the <FileUpload/> will be added to the video form.

add fileupload component

To upload a video file just click the + Upload File button and select the video you want to upload.

video-upload-file

The video will be directly uploaded to the data server and the response will be set in the formik state as fileUrl and fileId.

As we mentioned earlier, the <FileUpload/> UI component will directly upload the file into the data center using signed URLs, and the results data that will be saved into the application database.

For this example, the data that will be saved upon succesful file upload:

{
  title: 'The Sea',
  description: 'Beautiful Sea Video',
  url: 'https://antvideos.net/sea.mp4',
  fileUrl: 'https://s3.fr-par.scw.cloud/1e4eba76-328d-4cf0-b478-41076a6b83b3-environment-bucket/sea-1690048762556.mp4',
  fileId: 'c6d563dc-1441-4729-9fa5-cca0eeccd518',
  organization_id: 'k0sal34alksa-e1edklwe49320s',
  user_id: 'fe7885b3-5667-41e0-b478-6aa43e0635b5'
}

There are still a few changes to the code so the upload file data will be recorded on the database.

Change The Interface

You need to change the VideoInterface and added these two fields: fileUrl and fileId, both of these fields have a string type.

// src\interfaces\video\index.ts
export interface VideoInterface {
  id?: string;
  title: string;
  description?: string;
  url?: string;
  fileUrl?: string,
  fileId?: string,
  organization_id?: string;
  user_id?: string;
  created_at?: any;
  updated_at?: any;
  comment?: CommentInterface[];
  organization?: OrganizationInterface;
  user?: UserInterface;
  _count?: {
    comment?: number;
  };
}

export interface VideoGetQueryInterface extends GetQueryInterface {
  id?: string;
  title?: string;
  description?: string;
  fileUrl?: string;
  fileId?: string;
  organization_id?: string;
  user_id?: string;
}

Modify The Prisma Schema

To save the fileUrl and fileId to the database, the Prisma schema should be changed too.

model video {
  id              String        @id @default(dbgenerated("uuid_generate_v4()")) @db.Uuid
  title           String        @db.VarChar(255)
  description     String?       @db.VarChar(255)
  url             String        @db.VarChar(255)
  fileUrl         String?       @db.Text
  fileId          String?       @db.VarChar(255)
  organization_id String?       @db.Uuid
  user_id         String?       @db.Uuid
  created_at      DateTime      @default(now()) @db.Timestamp(6)
  updated_at      DateTime      @default(now()) @db.Timestamp(6)
  comment         comment[]
  organization    organization? @relation(fields: [organization_id], references: [id], onDelete: NoAction, onUpdate: NoAction)
  user            user?         @relation(fields: [user_id], references: [id], onDelete: NoAction, onUpdate: NoAction)
}

Here the fileUrl type is set to Text because the uploaded URL can be longer than 255 characters. To reflect the changes in the Prisma schema on the database, you need to run:

npx prisma regenerate

npx prisma migrate deploy

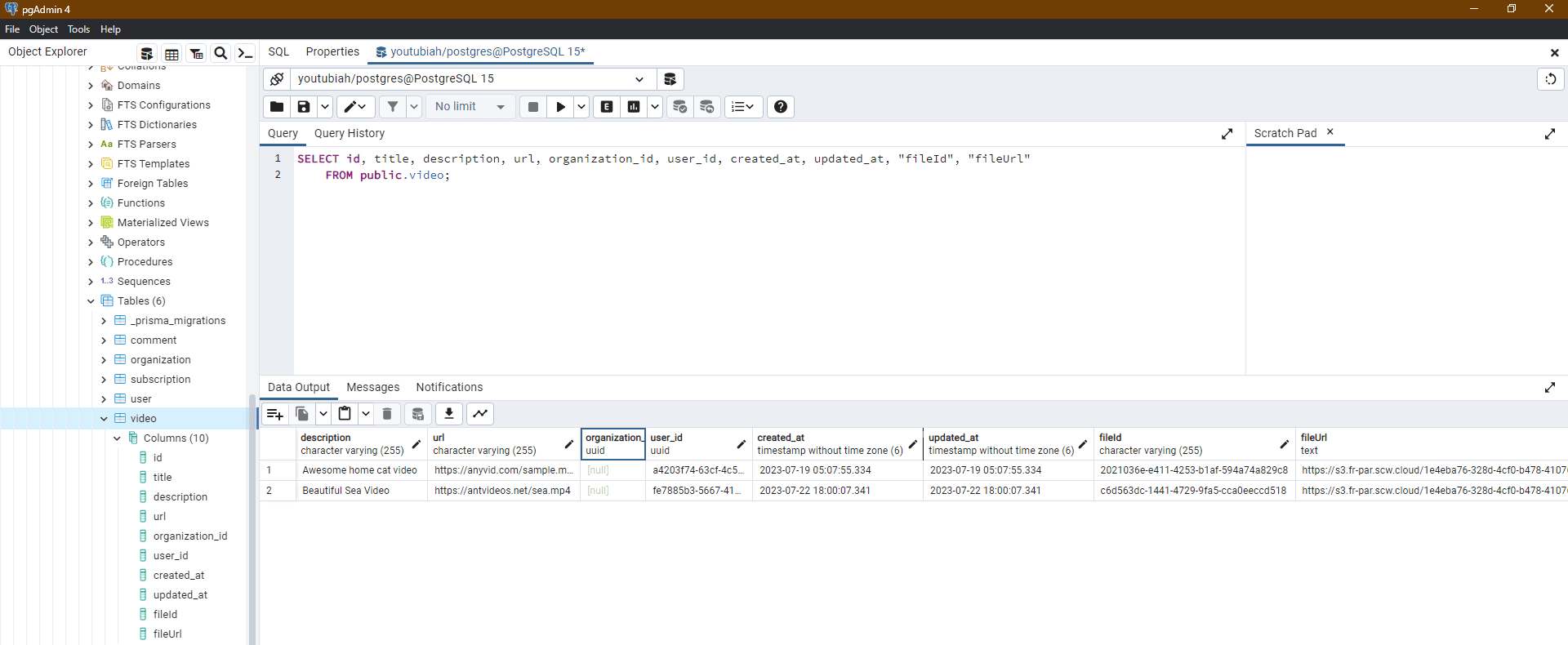

and if you use PostgreSQL for the database and pgAdmin for the administration tool, you will see the data is saved on the video table.

file upload data in postgres
